More Information:
- Switchmat Series: 12H, 14H, 15H, 30H designed for presence sensing in small areas.
- Easy Installation: Place on a smooth surface and connect lead wiring for operation.
- Functionality: This can require the operator to step on/off the Switchman to activate the machine.
- Dimensions: Series 12H, 15H & 30H are thin (3/8″), ideal for actuating alarms, bells, door signals, and safety cut-outs.

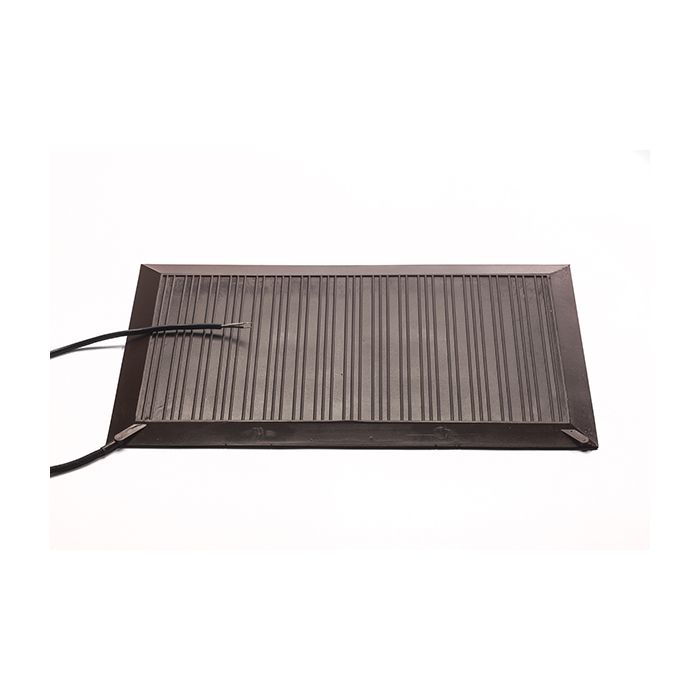

- Surface Features: Series 12H & 30H: Corrugated surface with molded ramp edging. Series 15H: Smooth surface with a molded blunt edge.
- Fail-Safe Operation: HD Series Switchmats paired with Recora Fail-Safe Control (FSC-6) for protection against lead issues and power failures.
- Construction: Completely molded, resistant to dirt, oil, weld splatter, and harsh liquids; active over 95% of surface area.
- Power Requirements: It is designed for low voltage (12 watts at 24 volts AC or DC) and is a single-pole, single-throw, normally open switch.
- Sensitivity: Standard sensitivity is 10-15 lbs.
- Lead Wires: Series 12H, 15H & 30H: Single 6′ 18 AWG 2-conductor wire (300 volts, 7 amp capacity). HD versions have dual leads for Fail-Safe Control; 4-conductor wires are optional.
- Color Options: Standard colors - Brown for Series 12; Black for Series 12, 15 & 30; other colors available.
| Description | Size | Activation Pressure | Weight | Colors Available |
|---|---|---|---|---|
| Series 12 Recora Switchmats | 10 x 17 in | 10 to 15 lb/ft | 9 lbs | Black, Brown, Yellow |
| Series 12 Recora Switchmats | 14 x 23 in | 10 to 15 lb/ft | 11 lbs | Black, Brown, Yellow |
| Series 12 Recora Switchmats | 18 x 30 in | 10 to 15 lb/ft | 20 lbs | Black, Brown, Yellow |
| Series 12 Recora Switchmats | 30 x 30 in | 10 to 15 lb/ft | 35 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 12 x 12 in | 10 to 15 lb/ft | 9 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 24 in | 10 to 15 lb/ft | 28 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 30 in | 10 to 15 lb/ft | 35 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 35 in | 10 to 15 lb/ft | 41 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 43 in | 10 to 15 lb/ft | 50 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 48 in | 10 to 15 lb/ft | 56 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 57 in | 10 to 15 lb/ft | 66 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 60 in | 10 to 15 lb/ft | 69 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 24 x 72 in | 10 to 15 lb/ft | 83 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 27.5 x 27.5 in | 10 to 15 lb/ft | 40 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 27.5 x 35 in | 10 to 15 lb/ft | 45 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 27.5 x 43 in | 10 to 15 lb/ft | 50 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 27.5 x 57 in | 10 to 15 lb/ft | 75 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 27.5 x 72 in | 10 to 15 lb/ft | 90 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 30 x 30 in | 10 to 15 lb/ft | 43 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 30 x 35 in | 10 to 15 lb/ft | 51 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 30 x 43 in | 10 to 15 lb/ft | 62 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 30 x 48 in | 10 to 15 lb/ft | 69 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 30 x 60 in | 10 to 15 lb/ft | 87 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 35.5 x 35 in | 10 to 15 lb/ft | 60 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 35.5 x 43 in | 10 to 15 lb/ft | 73 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 35.5 x 48 in | 10 to 15 lb/ft | 82 lbs | Black, Brown, Yellow |
| Series 14 Recora Switchmats | 35.5 x 60 in | 10 to 15 lb/ft | 85 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 8 x 24 in | 10 to 15 lb/ft | 5 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 8 x 27 in | 10 to 15 lb/ft | 6 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 12 x 12 in | 10 to 15 lb/ft | 7 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 12 x 36 in | 10 to 15 lb/ft | 9 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 16 x 16 in | 10 to 15 lb/ft | 10 lbs | Black, Brown, Yellow |
| Series 15 Recora Switchmats | 18 x 36 in | 10 to 15 lb/ft | 15 lbs | Black, Brown, Yellow |
| Series 30 Recora Switchmats | 10 x 17 in | 10 to 15 lb/ft | 9 lbs | Black, Brown, Yellow |
| Series 30 Recora Switchmats | 14 x 23 in | 10 to 15 lb/ft | 11 lbs | Black, Brown, Yellow |
| Series 30 Recora Switchmats | 18 x 30 in | 10 to 15 lb/ft | 20 lbs | Black, Brown, Yellow |
| Series 30 Recora Switchmats | 30 x 30 in | 10 to 15 lb/ft | 35 lbs | Black, Brown, Yellow |
